( ESNUG 524 Item 3 ) ---------------------------------------------- [05/16/13]

Subject: Jasper case study on formally verifying secure on-chip datapaths

    - Jim Hogan, Vista Ventures, LLC
      http://www.deepchip.com/items/0511-04.html

From: [ Ziyad Hanna of Jasper DA ]

Hi, John,

Back in ESNUG 511, Jim Hogan did a detailed analysis of On-Chip Networks and
NoCs.  In that write-up, Jim made only a cursory mention of the security of
on-chip networks.

What I'd like to do is delve more into securing datapaths on your chip, and
the problem of knowing whether-or-not your datapaths are ACTUALLY secure.


ON-CHIP SECURITY NOW

Currently for HW design, there are three major on-chip security approaches:

    1. ARM TrustZone is a system-wide approach to security on mobile
       computing used for secure payment, digital rights management
       (DRM), enterprise, and web-based services.

    2. Intel Trusted Execution Technology (Intel TXT) is HW-based
       security for mostly PC physical and virtual infrastructures.

    3. A number of other chip design houses have come up with their
       own proprietary on-chip datapath security schemes.

Encryption algorithms and techniques for securing on-chip data are an active
research topics in academia and on industrial fronts.  Often, researchers
will use commercial formal property tools to check the correctness of their
algorithms.  However, the big question that comes up is exactly where to
store such on-chip encrypted data (in the software or the hardware) and how
to verify the access control.  Recently, we have seen a trend toward storing
secure data in hardware in the form of embedded microcode or in the actual
silicon implementation itself.  The aim being to make it much harder for
attackers to have access to sensitive data.

Despite these approaches, we still see successful break-ins on secure data.

The problem is that these on-chip secure data systems are NOT fully NOR
formally verified in order to 100% know that they have no "holes".


THE VERIFICATION PROBLEM

Current methodologies use an "ad hoc" approach to security verification that
is part of design, IP integration, system validation, and SW development.
The main method of verification is through simulation with a focus on trying
to enumerate all of the possible security leakage scenarios and simulating
them.  While this approach is scalable with simulation capacity, it is not
exhaustive -- thus many scenarios are left unchecked -- which means there
are unchecked pathways for attackers to use.

Using formal techniques is a natural way to increase the overall confidence
in the security of your chip.  However, the major focus we see continues to
rely on verifying ONLY the correctness of encryption algorithms and their
implementation in software and hardware -- NOT the whole security process.

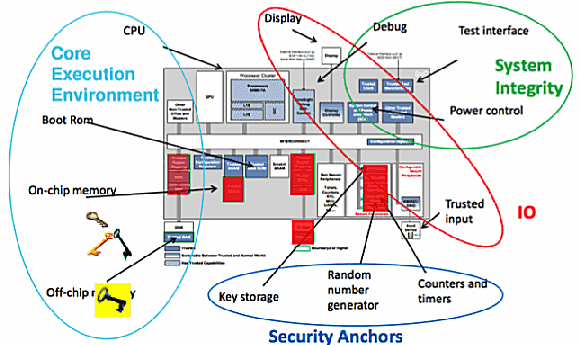

                  ARM Trust Based System Architecture

In a typical chip, you can identify various security anchors, such as:

               - key storage,
               - random number generators,
               - counters and timers, and
               - various security data storage elements.

The big question is, "is it possible to access our sensitive information
from outside the pin interface (or external access points) to the system?"
In other words:

     1. Is it possible to read any security related data from a
        certain location A to location B through some control C?
     2. Is it possible to modify any security related data?
     3. Are there failure modes that would compromise the safety
        of any security related data?

We created our Jasper Secure Path Verification App (SPV) to just answer such
practical questions.


UNINTENDED DATAPATH HOLES

The main reason why Secure Datapath Verification is so messy is because most
chips today consist of 10's (to maybe ~100) IP blocks -- which creates a
mishmash of 100 (to maybe ~100,000) different possible data transfers.

In addition, test/scan logic can add unexpected paths where secure data can
be leaked out of a chip.


To contain the secure datapath verification problem, system architects will:

      - isolate secure areas (the red areas in the above drawing),
      - analyze the data flow of the whole system,
      - manually identify possible leakage paths by observing, and
      - adding blocking conditions to block these leaks.

On the other hand, system integration engineers analyze the structural paths
and try to convince themselves that they are false paths.

No doubt, this is a tedious "ad hoc" methodology that can work on a small
subset of traces, but it is difficult to get a real sense of completeness.


SECURE DATAPATH SPECIFICATION

Specifying whether there is a legitimate path from location A to location B
in your Verilog/VHDL RTL is not straightforward using standard specification
languages like SVA.  Users need to add some glue logic and many assumptions
to constrain the search for such a path.

One way to do this is by:

      - disconnecting signal A from its driving logic,
      - constrain signal A to a stable value of A_unique,
      - ensure other sources of data can NOT drive A_unique, and
      - then check whether target signal B can eventually
        receive the value A_unique.

If so, then there is a logical path from signal A to signal B; otherwise, no
functional path exists.

Notice that the number of instances of the assumption

              assume (other_source_of_data1 != A_unique)

can be large depending how big the cone of influence on target signal B is.

It's possible to use this approach, but it's clearly not a straightforward
method.  It requires the user to add the glue logic and enumerate all the
assumptions; therefore, it's error prone.  Imagine the enormity of the task
if the user wants to check many paths.  That requires much more logic and
more added assumptions.

Another important deficiency of this method is that if your data mutates
(for example, is inverted or split into smaller chunks) between A and B,
this approach will miss a path.

With our Jasper SPV App, the user simply specifies the path property:

                  assert -no_path -from A -to B

This simpler method hides the complexity of the modeling details, so the
user does not need to develop nor maintain the model.  We extended the
semantics of our security path verification to find path conditions that
force the paths to visit or skip certain locations in the design.

Checking from two points is used in two complementary ways:

   - is there is a datapath from a non-secure area to a secure area?
   - is there is a datapath from a secure area to a non-secure area?

Illegal datapaths to a secure area can introduce vulnerabilities in which
non-secure data is mistaken as secure, while illegal datapaths from a
secure area can leak data to the hackers.  With the Jasper SPV App, the
user can specify the datapaths and then verify them formally.


HOW THIS FORMAL VERIFICATION STUFF WORKS

A simple verification approach is to apply structural analysis to traverse
the cone of influence of the target signal B backwards and determine whether
the traversal can reach signal A.  If the traversal does not reach signal A,
it is guaranteed that there is no path from A to B, and this is trivially
a false path.

However, if the traversal reaches signal A, there may or may not be a
functional path.  This depends on the logical behavior of the design and
the assumptions involved.

The Jasper SPV App applies the structural analysis as a simple pre-process
method to rule out false paths.

         ----    ----    ----    ----    ----    ----   ----

Simulation is another conventional method used to validate security paths.
It is usually based on inserting X values at the source of the paths and
checking whether the destination signals can receive the X value.  This
method is not complete because it can show the paths, but it cannot verify
their absence.  In addition, simulation methods suffer from X optimism and
X pessimism, which can cause generation and suppression of X values during
simulation.

And as a result, false paths are detected and true paths are missed.

         ----    ----    ----    ----    ----    ----   ----

Applying a standard formal property verification approach may be effective,
but it suffers from usability issues -- and that is because of the need to
add assumptions to force a desired path to be from a desired point.

Another issue is correctness, and that is because paths may be missed in
cases where the data is mutated between source and destination.

         ----    ----    ----    ----    ----    ----   ----

Jasper's approach does not have the limitations/issues of the above methods.
It is based on the "path sensitization" technology we developed specifically
for secure datapath verification problems.

We introduce a new type of property with the format

                       assert -no_path -from A -to B

that checks if there's a functional path from source signal A to destination
signal B.  By proving this property, the formal engines inject a unique tag
called "taint" on A and check whether this unique tag can ever appear at B.

If the property is formally proven, it means that it's impossible to expose
data from A on B under the current set of constraints.

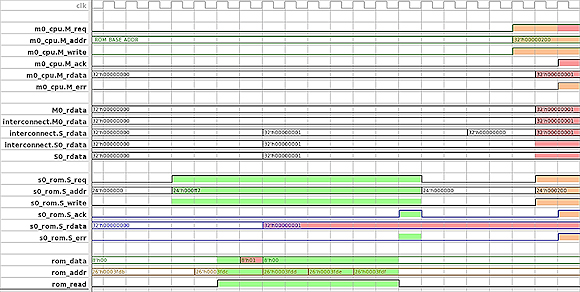

On the other hand, if the tool is able to make the property fail, a counter-
example will show how data from A can be exposed on B.

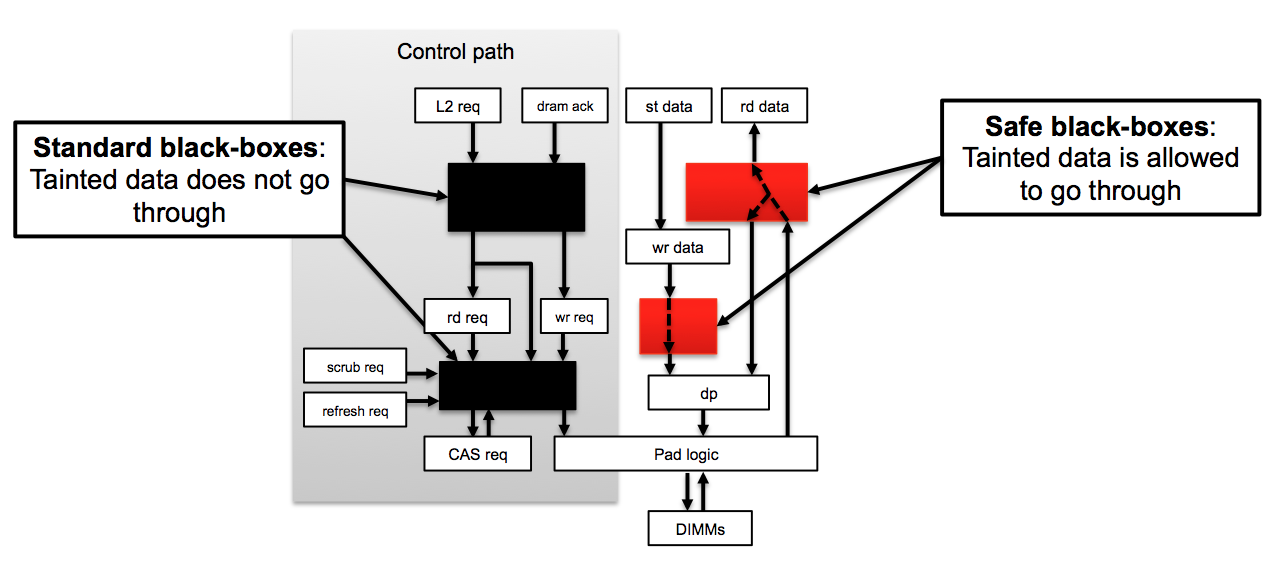

BLACK BOXING

Checking assertions on big SoC designs can be a challenging proof because of
the complexity of the preconditions at A and B and the deep levels/complex
nature of the logic.  Obviously, it is possible to safely black box some of
the modules that are not in the desired paths -- however, if such modules
can interfere with the paths, then black boxing is not a valid approach.

To cope with these issues and for scalability reasons, Jasper SPV App adds a
concept of the "safe connectivity abstraction" to make sure that "tainted"
values still propagate in semi-black-boxed modules.

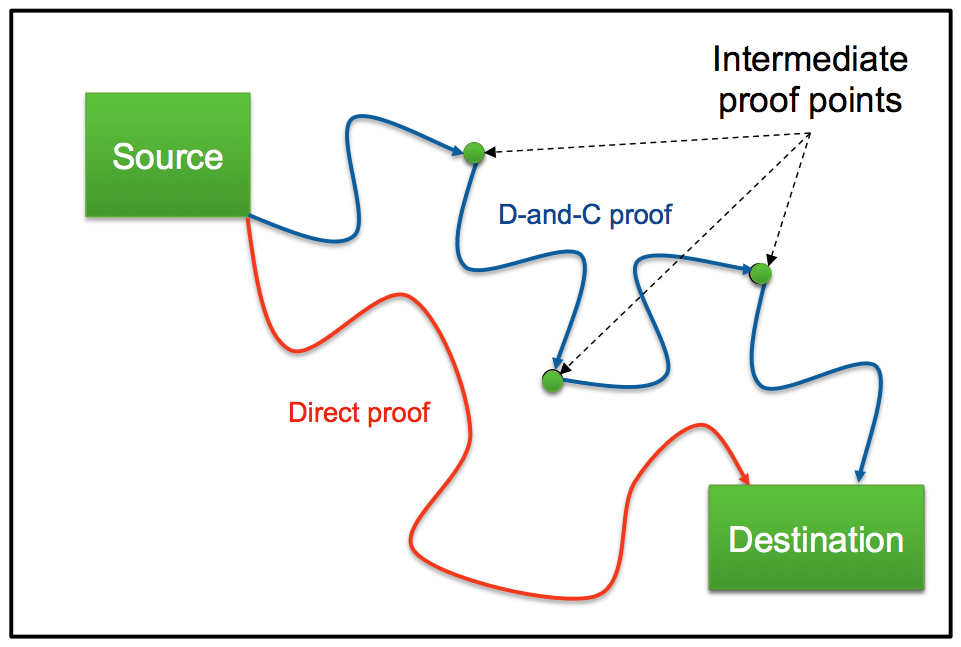

DIVIDE AND CONQUER

Another method used by the Jasper SPV App to cope with long search paths is
divide-and-conquer.  With this approach, the tool searches for a functional
path between points A and B by searching for intermediate relevant points
and trying to construct a path through them.



SPV App is built on JasperGold -- it leverages its modeling, optimization,
proof engines, and debugging features.   We're happy to say with D-and-C,
it scales nicely to large designs.


JASPER SPV VS. FORMAL PROPERTY VERIFICATION

Secure Path Verification is essentially different from the formal property
verification approach.

In security verification, we check whether there are possible paths outside
the normal specification scope.  Basically, we mimic the hacker approach by
breaking the specification to see if it is possible to leak secure data via
unexpected paths.

On the other hand, with formal property verification, we check whether the
property is always correct under the constraints.

That said, in security verification, we sometime want to run in an under-
constrained environment (such as during reset) or without environmental
constraints or even with partial constraints.

If we prove there is no functional path without environmental constraints,
this is a much stronger result compared to a fully constrained environment.

The challenge is to cope with false negatives, which means that since the
SPV App is showing a path under a partial formal setup: "have we found a
security violation or not?"

Our JasperGold debugging capabilities (such as Visualize, what-if analysis,
dynamic constraints, and so forth) help users analyze the results of the
verification to feel confident in the results -- that is, be convinced that
such a path is legal or not.

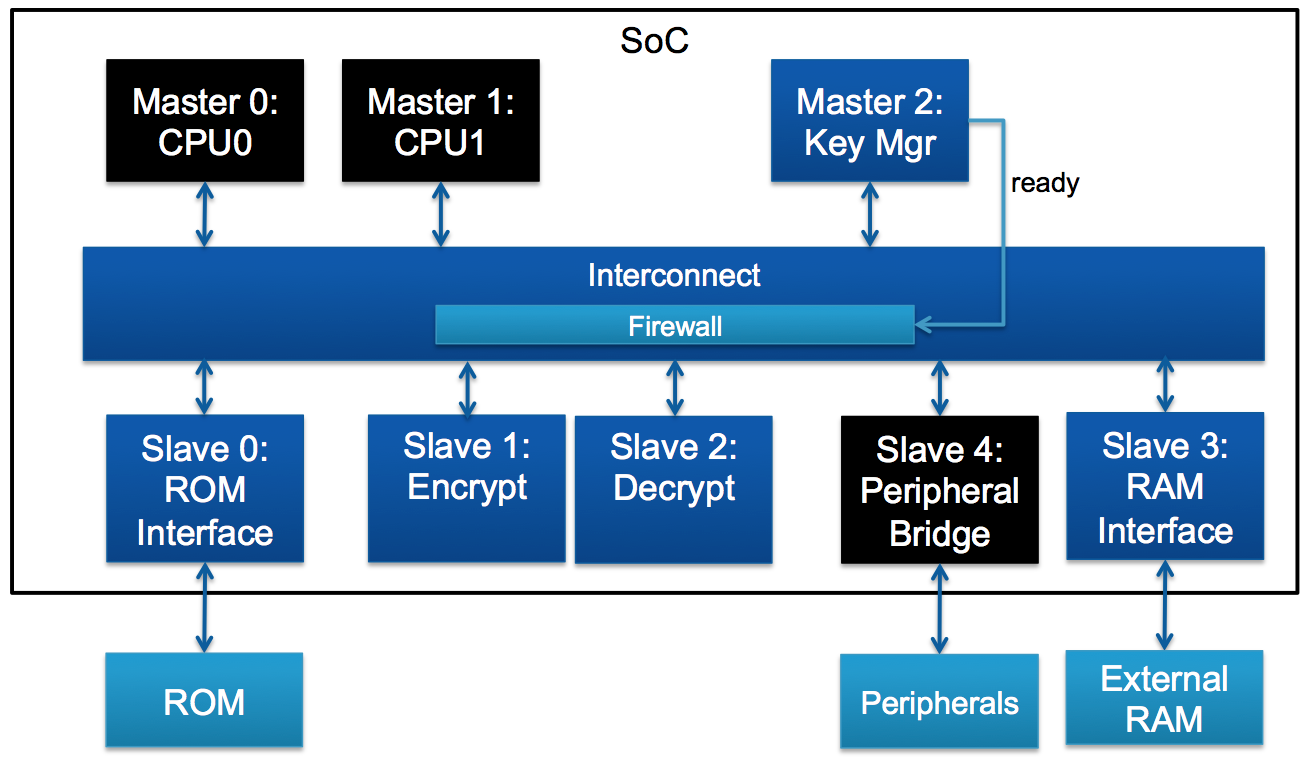

A JASPER SPV CASE STUDY

In this case study, we show SPV App being used on a small example design.


The masters of this network are the CPUs and a "Key Manager".  The role of
the Key Manager is to read encryption/decryption keys from the ROM and
transport them to specific cryptographic slaves, which are in charge of
encryption/decryption operations.  After completing this process, the FSM
inside Key Manager moves to a "ready" state, which unblocks communication
channels in the firewall through a side channel.

This network has several security requirements.  Some are functional
requirements that deal with the proper operation of Key Manager, firewall,
and ROM interface.  These can be described in SVA or PSL and are a good
fit for JasperGold Formal Property Verification (FPV) App.

However, this network also has data propagation and control propagation
requirements that specify which resources are visible (i.e. accessible)
by agents in this system under a specific configuration.  As explained
earlier in this post, those are not a good fit for SVA or PSL properties,
but they are a good fit for JasperGold SPV App.

Usually, these propagation requirements can be divided into "leak" and
"illegal overwrite" checks.  We will focus on five requirements, which we
expect will cover different areas where the tool can be applied.

   1. No Security Leak: Secure data/control should never reach
      non-secure areas

         a. Keys should never reach CPUs without going through
            encryption logic
         b. Key Manager FSM state should never reach CPUs

   2. No Illegal Overwrite: Non-secure data/control should never
      reach secure areas

         a. Slave's copy of key never be overwritten by CPUs
         b. Slave's copy of key not come from non-secure ROM locations
         c. Slave's key control information never be affected by CPUs

The above requirements will be verified by

                    assert -no_path properties

SPV App creates the properties when you use the command

                       check_spv -create

THE "NO SECURE LEAK" CHECK

We want to check that keys should never reach the CPUs without going
through encryption logic.  Here we tell the tool to find a path between the
ROM interface and CPUs that does not go through encryption/decryption logic.
To ignore paths going through the cryptographic logic, we use the command
"stopat", which disconnects the logic driving the signal:

    % stopat s1_encrypt.cypher_data ;# Disconnect encryption logic
    % stopat s2_decrypt.cypher_data ;# Disconnect decryption logic

Now, we can create the main properties that will look for a path between the
ROM and the CPU:

    % check_spv -create \
        -name leak:KEY_to_CPU0 \
        -from rom_data -from_precond \
           {rom_read && (rom_addr == `KEY_ENC || rom_addr == `KEY_DEC)} \
        -to m0_cpu.M_rdata -to_precond m0_cpu.M_req

    % check_spv -create \
        -name leak:KEY_to_CPU1 \
        -from rom_data -from_precond \
           {rom_read && (rom_addr == `KEY_ENC || rom_addr == `KEY_DEC)} \
        -to m1_cpu.M_rdata -to_precond m1_cpu.M_req

Notice how the assertions are qualified with the switches -from_precond and
-to_precond.  We use the switch -from_precond to direct the tool to search
only for paths coming from rom_data when an encryption key is being read
from the ROM.

As for -to_precond, we use it to restrict the search for scenarios in which
tainted data gets to the CPU when it is requesting data.  When proving the
assertions, the tool finds a bug related to a write operation being done
to the ROM.



This counter-example shows how a piece of an encryption key (red highlights)
can get from the ROM to the CPU.

In this scenario, the CPU posts a "write" request to the ROM (orange), which
generates an "error" response (signal S_err/M_err asserted).  However, the
data associated with this response is from the prior "read" operation done
to the ROM.  The previous "read" operation (green) is to read an encryption
key, which was initiated by the Key Manager.  Therefore, the data associated
with the error response going to the CPU is also a piece of the encryption
key, and that is a security hole.

    - Ziyad Hanna
      Jasper DA, Ltd.                            Haifa, Israel

   !!!     "It's not a BUG,
  /o o\  /  it's a FEATURE!"
 (  >  )
  \ - /
  _] [_     (jcooley 1991)
